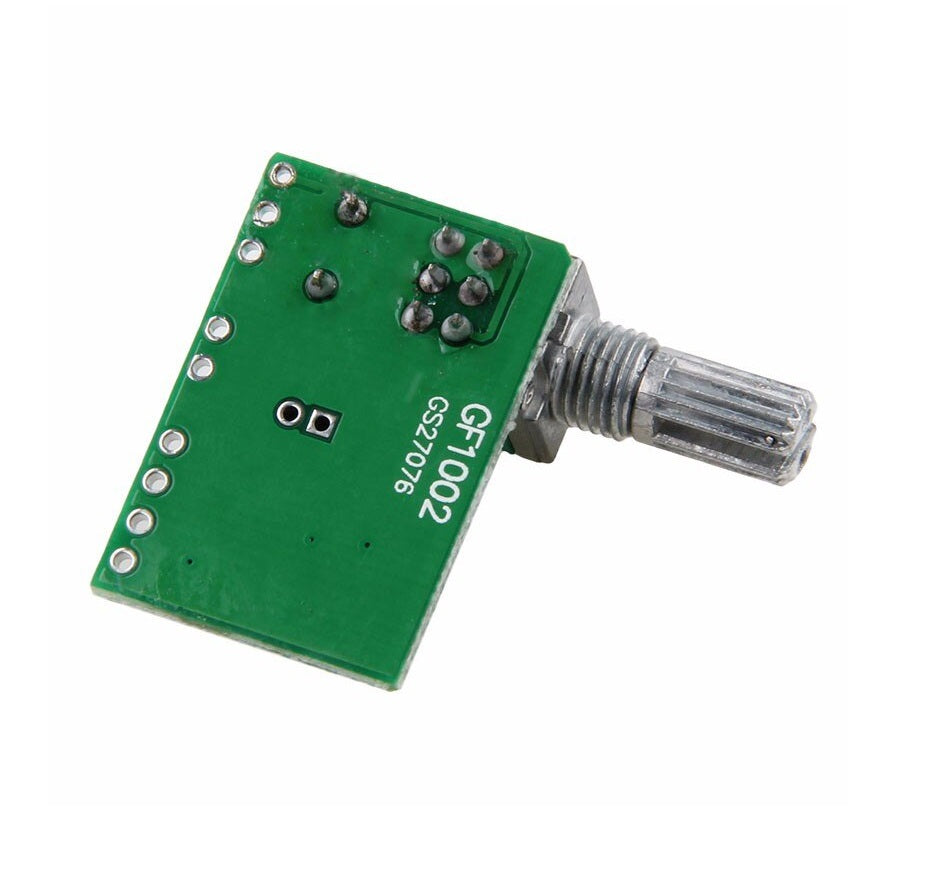

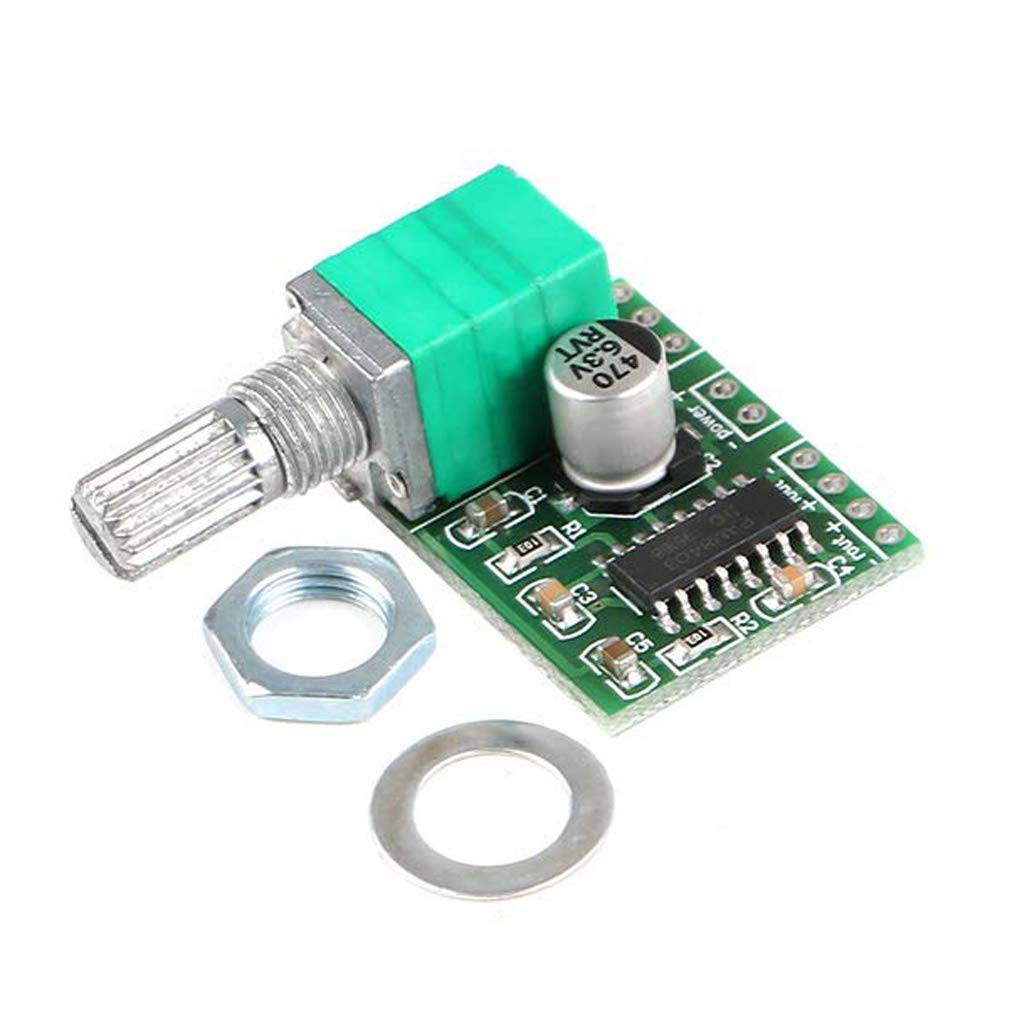

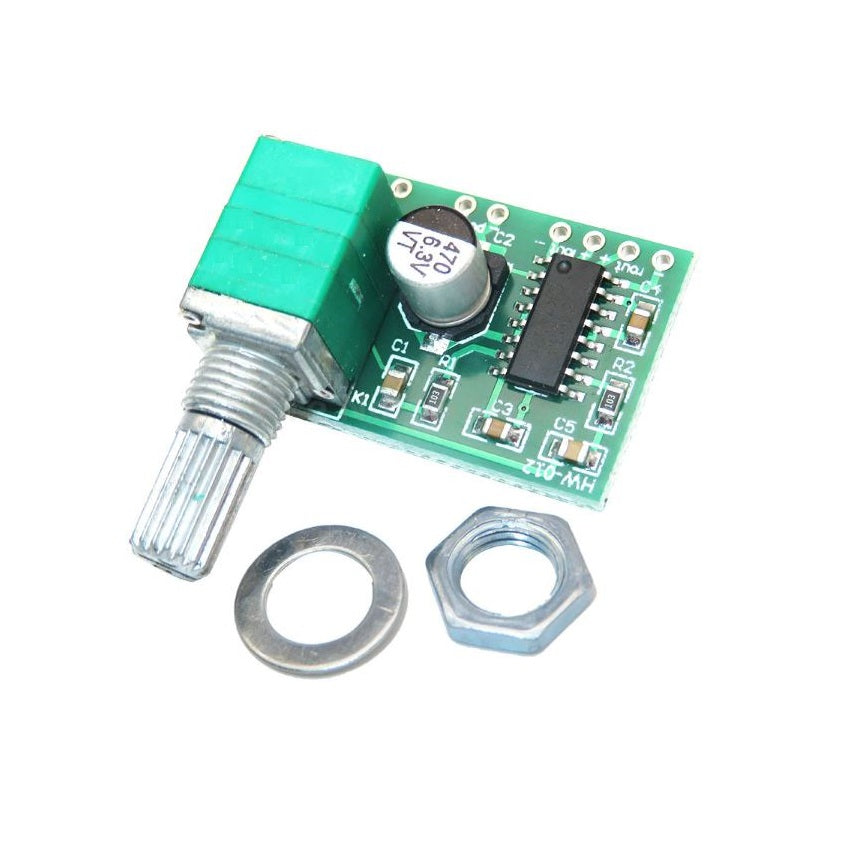

PAM8403 MINI 5V AUDIO AMPLIFIER BOARD WITH SWITCH POTENTIONMETER

DESCRIPTION

PAM8403 is a small digital amplifier chip, high-definition digital sound chip highlighting strengths, the circuit uses the most reasonable peripheral configuration, power supply filtering is upgraded to 470uf (some sellers are not to even have 100uf capacitor) 1.6mm glass sheet, the real amplifier board to do the most detailed, high-fidelity sound output 3W +3 W is the power amplifier enthusiasts rare good product, potentiometer using the original anti-meter body, life expectancy up to 15 years, a potentiometer with the switch off the power can be directly counter-clockwise.

Features

• Operating Voltage: 2.5~5.5VDC
• Maximum Output Power: 3Wx2
• PCB size is about: length 30mm width 22mm overall height after installed is about 16mm
• Built with switch Potentiometer, can adjust the volume & control power switch freely!
• Flexible assembly usage
• Efficiency can reach above: 90%
• Length: 30mm
• Width: 20mm
• Weight: 8gm
