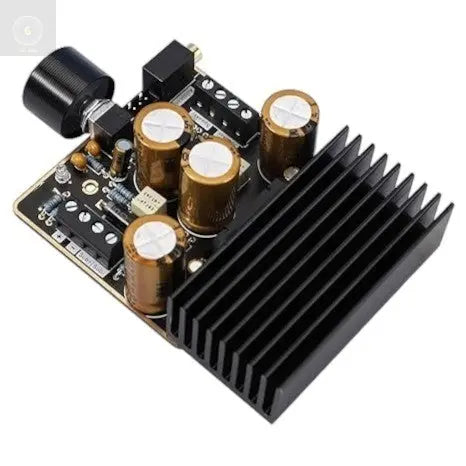

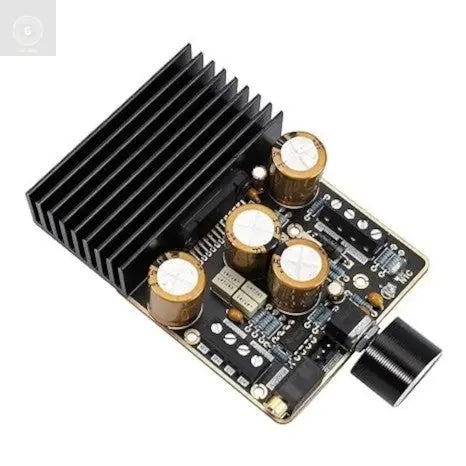

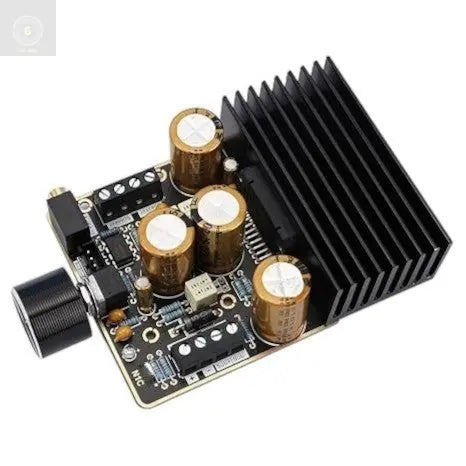

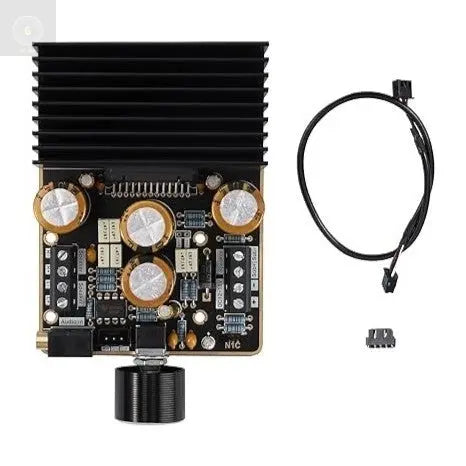

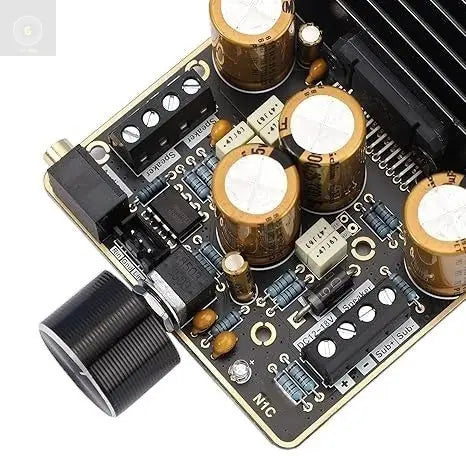

CA Class AB Amplifier, 2.1 Channel 80W+80W Stereo And120W Pure Bass 9-18V 4 Audio Amplifier Board

Description.

1. Gold-sunk wiring for better sound
2. Optimized ground wiring to eliminate bottom noise
3. Immersion gold circuit board, car-grade amplifier chip, Nichicon professional audio filter capacitors
4. Input mode: 3.5mm audio cable input or 3P 2.54mm terminal input
5. Can be connected to 2/4/6/8 ohm speakers
6. Protection function: reverse power input protection, short circuit protection, over-current protection, overheat protection
7. Supply voltage: DC12-18V
8. Output power: 2x80W stereo (18V / 4 ohms) and 1x120W pure bass (18V / 2 ohms)
9. Potentiometer knob opening: 7mm

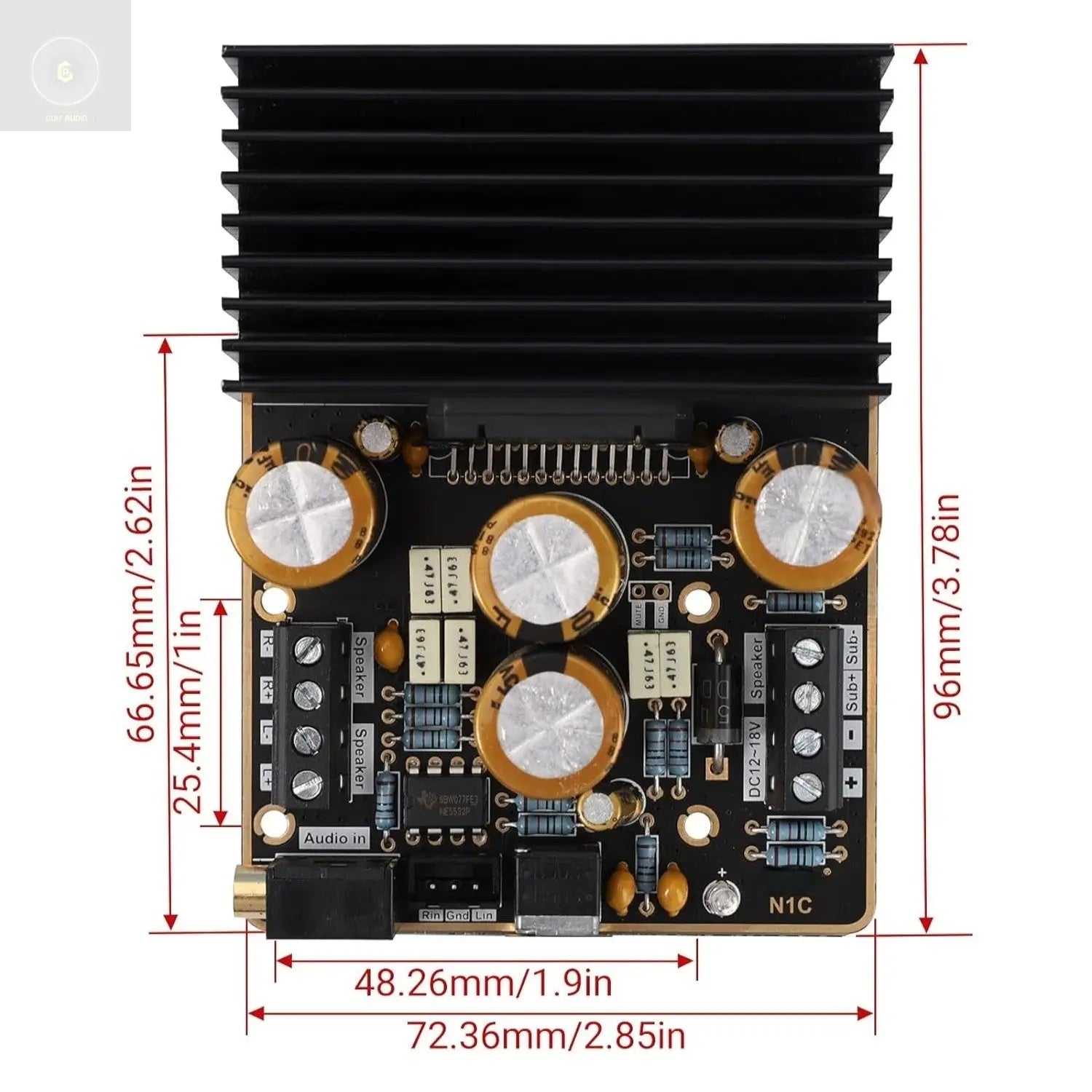

10. Mounting hole spacing: 25.4x48.26mm (Bluetooth module spacing compatible)
11. PCB size: 72.36 x 66.65mm

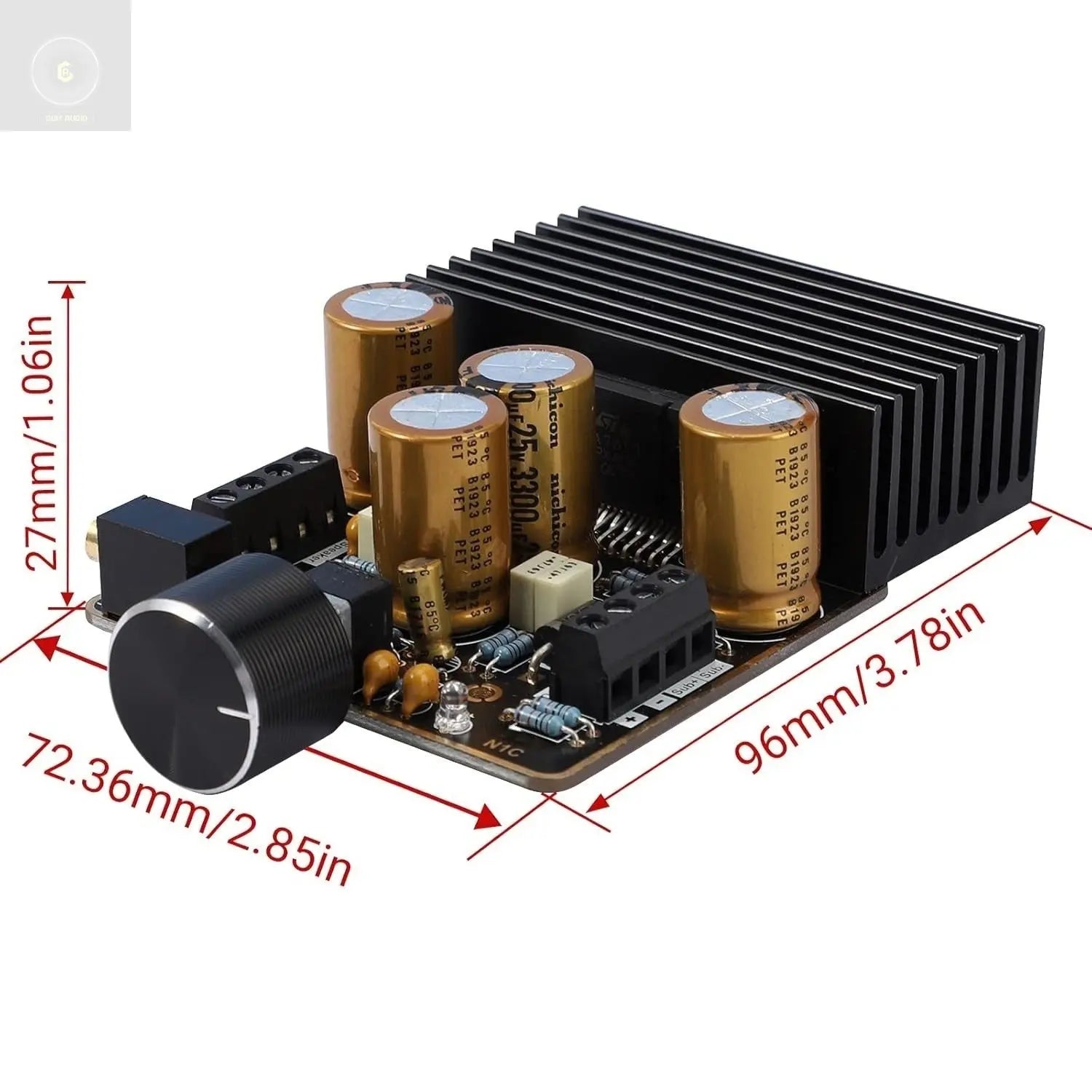

12. Overall (including heat sink):: 72.36 x 96 x 27mm
13. Weight: 170g
